Electromagnetic protection: ≧EMC three
Wide voltage: support DC9~36V, multiple protection
High reliability: independent hardware watchdog
Serial port DTU: support RS232 or RS485
Positioning tracking: support GPS real-time positioning
Wireless network: support 2.4G WiFi (802.11b / g / n)

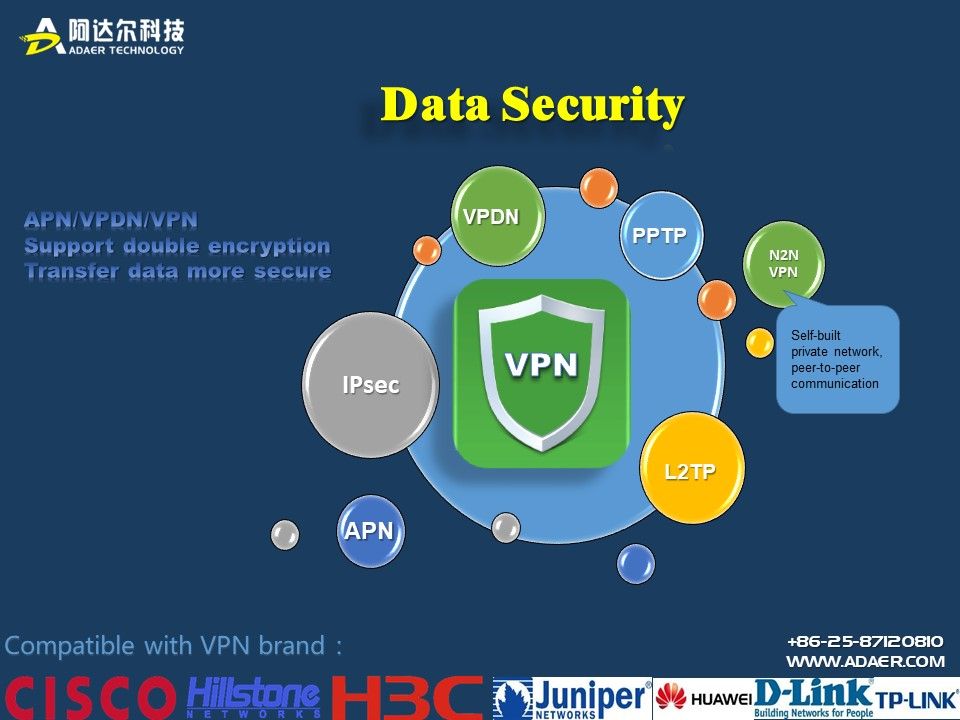

Data Security: Support IPsec\L2TP\PPTP\N2N VPN

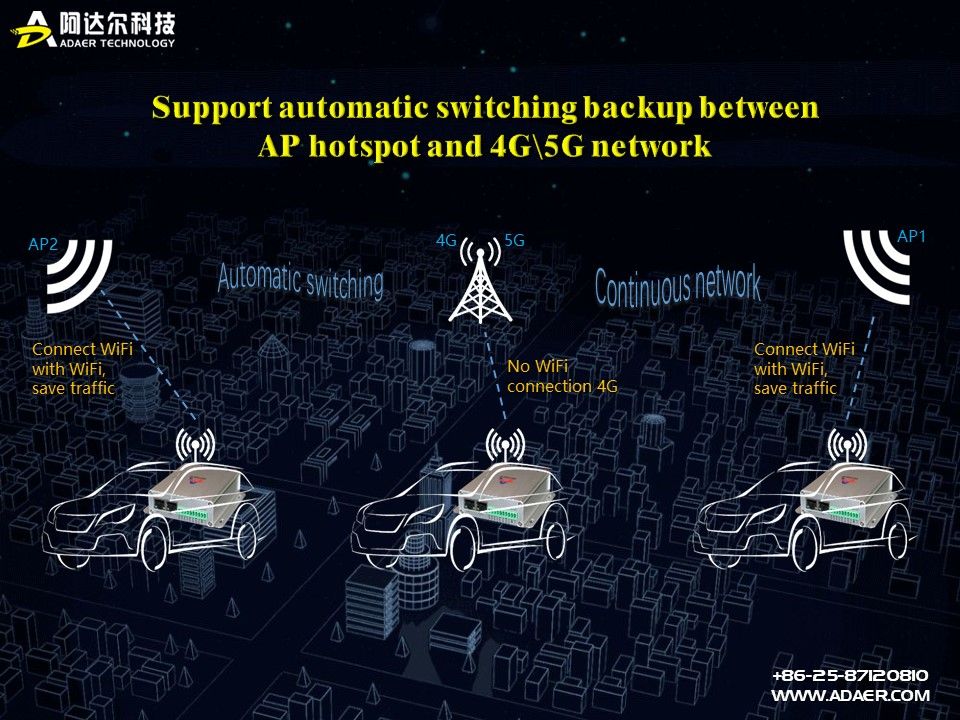

Dual SiM Card: Support dual card automatic switching backup
| Category | Project | Description | Remark | |
|
Hardware Platform |
CPU | MIPS SoC 580MHz | ||
| DDR | 128MB(1Gbit) | |||
| FLASH | 16MB(128Mbit) | |||
|
Physical Interface |
Ethernet interface | 5x10/100Mbps RJ45，1Wan+4Lan | ||
| Serial interface | RS232 x1 or RS485 x1 ESD ：Contact 8KV, air 15KV Pluggable 3.5mm pitch industrial terminal block form |
Optional | ||
| Console | RS232 x 1，Pluggable 3.5mm pitch industrial terminal block form | |||
| WiFi | 2.4G(802.11 b/g/n，Max 300M) | Optional | ||
| Voice interface | Standard 3.5 four-segment audio jack | Optional | ||
| Reset | Pinhole reset button | |||
| SIM Card | Micro SiMx2 self-elastic self-locking or SMD eSiMx2（Optional） | |||
| Storage | Support TF card, up to 32GB | Optional | ||
| Antenna interface | Standard SMA female (outer screw bore), impedance 50 ohms | |||
|
Mechanical Properties |
Installation size | Shell：156x113x32mm，PCB：135x100x18mm | ||
| Installation method | Desktop, wall, rail（Optional） | |||
| Shell material | Aluminum alloy | |||
| Protection level | IP50 | |||
| Cooling method | Fanless heat | |||
| Power | Power input | DC 9-36V | ||
| Power interface | Pluggable industrial terminal block connection | |||
| Power protection | Support overvoltage, overcurrent, reverse protection | |||
| Environment | Humidity | 5 ~ 95% （No condensation） | ||
| Storage | -40 ~ 85℃ | |||
| Operating | -30 ~ 70℃ | |||
| Other | Power consumption |
Typical value during communication：160mA@12V； Typical value when idle：120mA@12V |
||
| Pilot lamp | PWR, SYS, TF, WIFI, GPS,LAN,WAN,VPN,CELL,Signal light | |||
| Function and interface |
Product model | ||||||
| ADR-R9185HA | ADR-R9185HB | ADR-R9185HC | ADR-R9185HD | ADR-R9185HE | ADR-R9185HF | ||
|
Hardware interface |
SiM1 | √ |
√ | √ | √ | √ | √ |
| SiM2 | \ |
\ | \ | √ | √ | √ | |
| WAN | √ | √ | √ | √ | √ | √ | |
| LAN1 |
√ | √ | √ | √ | √ | √ | |
| LAN2 | √ | √ | √ | √ | √ | √ | |
| LAN3 |
√ | √ | √ | √ | √ | √ | |
| LAN4 | √ | √ | √ | √ | √ | √ | |
| RS232 | \ | √ | \ | \ | √ | \ | |
| RS485 | \ | \ | √ | \ | \ | √ | |
|
Standard function |
Switching | √ | √ | √ | √ | √ | √ |
| APN/VPDN | √ | √ | √ | √ | √ | √ | |
| ICMP detection | √ | √ | √ | √ | √ | √ | |
| SPI firewall | √ | √ | √ | √ | √ | √ | |
| Port Mapping | √ | √ | √ | √ | √ | √ | |
| IP filtering | √ | √ | √ | √ | √ | √ | |
| MAC filtering | √ | √ | √ | √ | √ | √ | |
| Port filtering | √ | √ | √ | √ | √ | √ | |
| QoS | √ | √ | √ | √ | √ | √ | |
| Traffic Statistics | √ | √ | √ | √ | √ | √ | |
| DDNS | √ | √ | √ | √ | √ | √ | |
| Cloud platform | √ | √ | √ | √ | √ | √ | |
| Timed restart | √ | √ | √ | √ | √ | √ | |
|
Optional function |
DTU | / | -D |
/ | -D | ||
| VPN | -V | ||||||
| GPS/BD | -G | ||||||
| WiFi | -W | ||||||
| Remote wakeup | -M | ||||||
|
Emergency voice communication |
-T | ||||||
| Line backup | -B | ||||||
|
Customizable features |
FTP | -F | |||||
| GPIO | -O | ||||||
| SNMP | -S | ||||||
| WiFi+ | -W+ | ||||||
| Local authentication | -R | ||||||
| TF | -U | ||||||
|
Examples |
ADR-R9185HD-BV：Standard function+VPN+Line backup | ||||||
